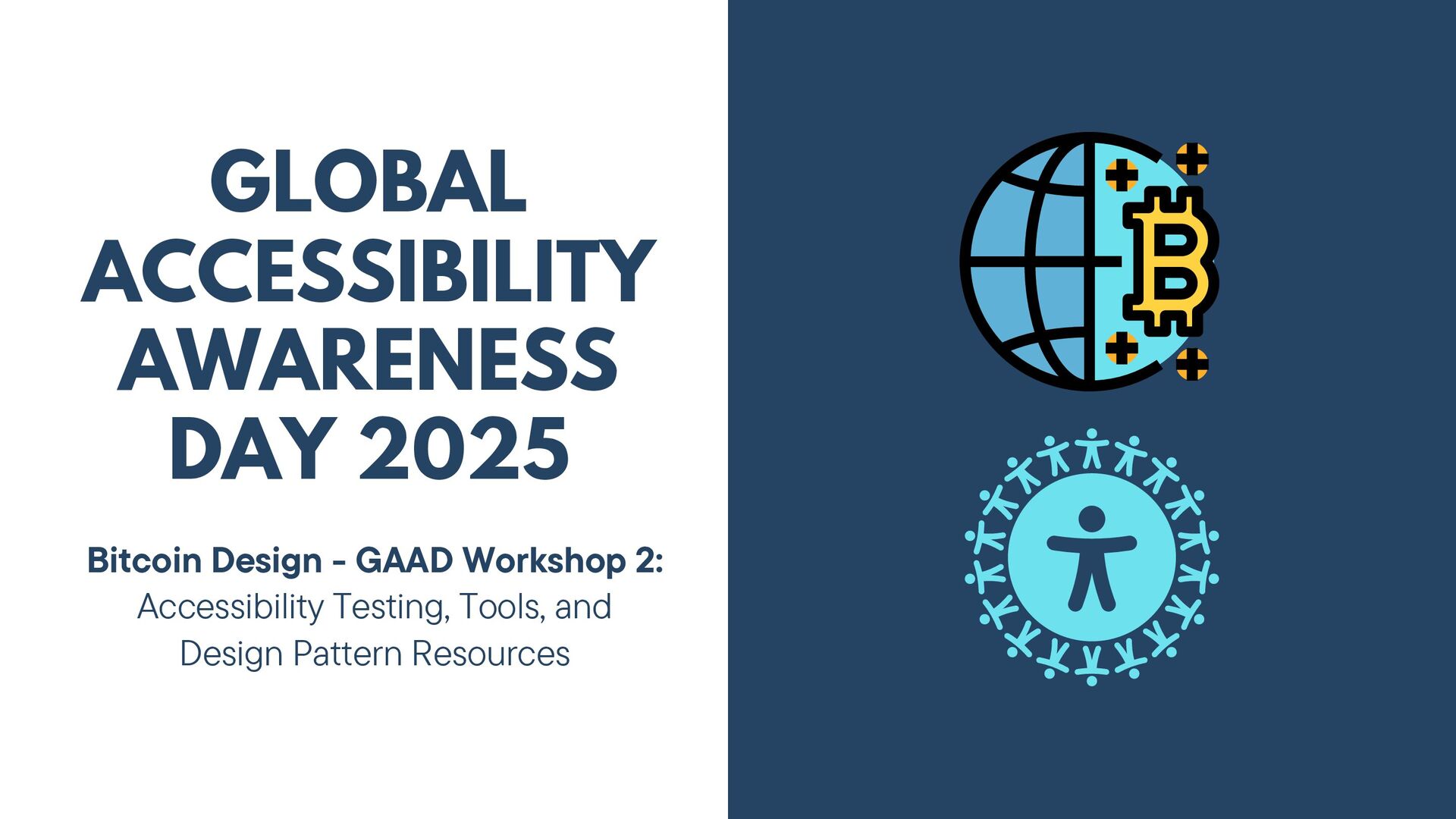

BitcoinDesign-GAAD-Workshop2

Date: 2025-05-16
Presenter: Round Rock Bitcoiners

Outline & Notes​

BitcoinDesign-GAAD-Workshop2

Date: May 16, 2025

Core Principle​

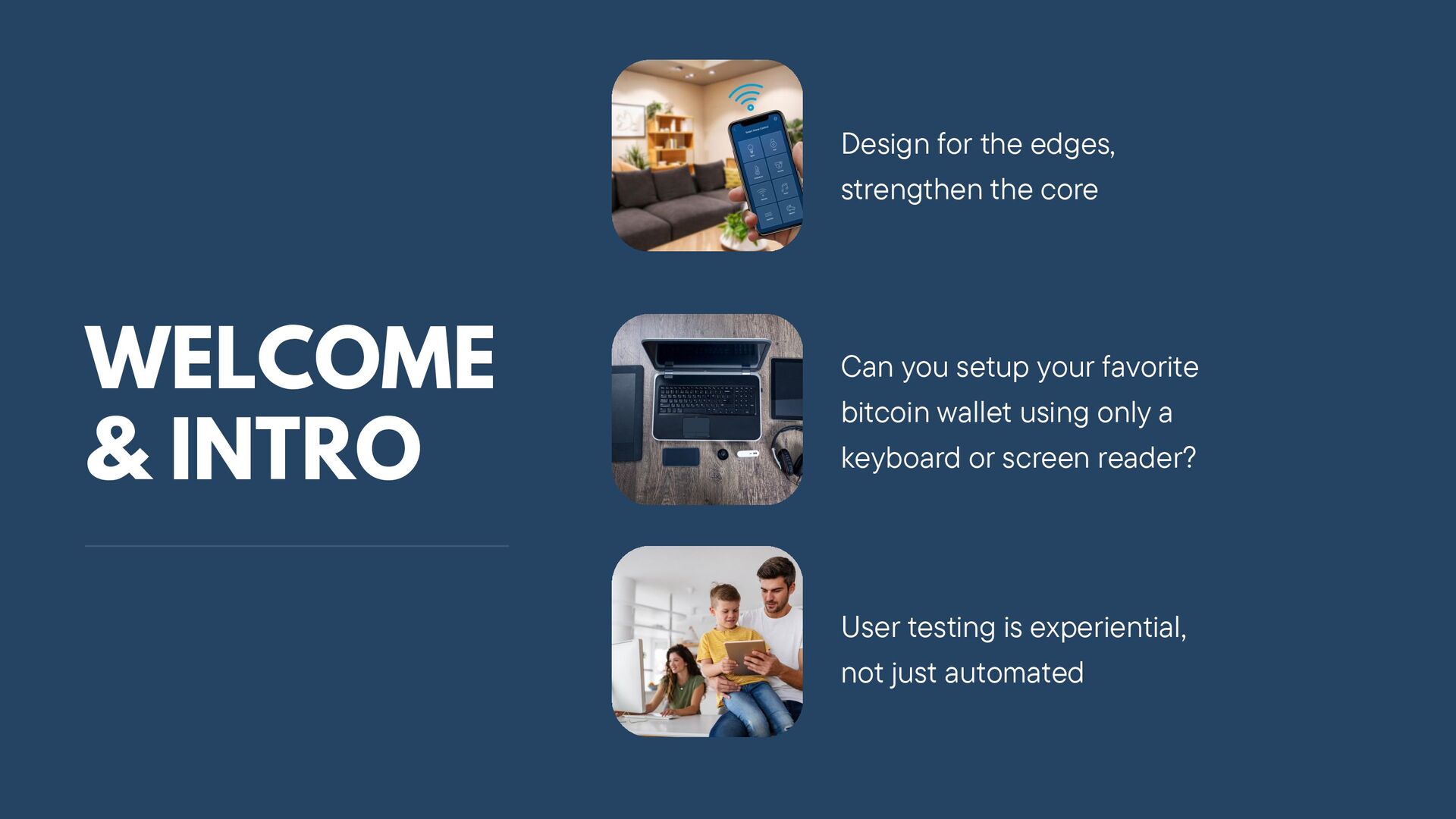

"Design for the edges, strengthen the core" "Can you setup your favorite bitcoin wallet using only a keyboard or screen reader?"

Manual Testing Checklists​

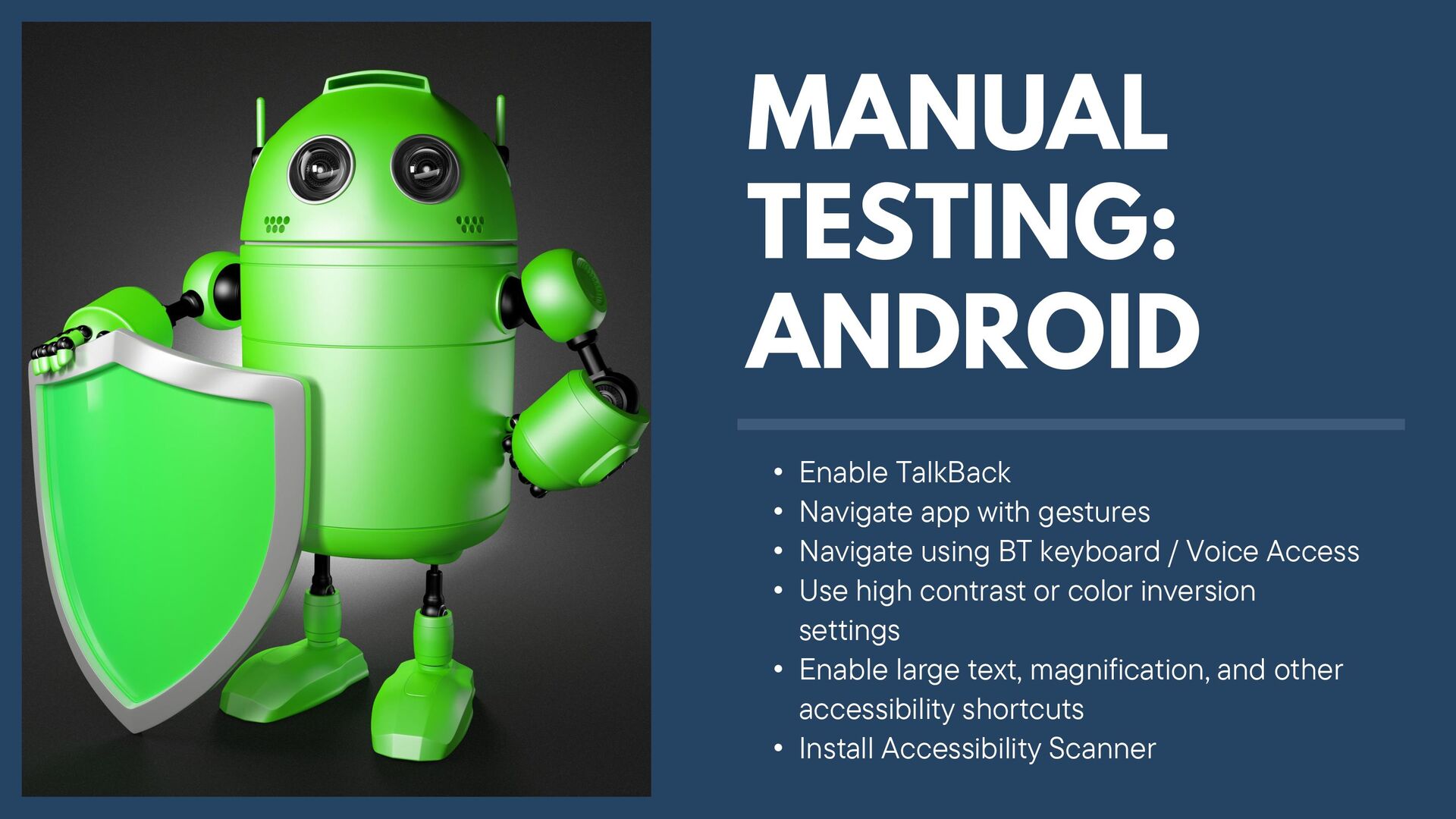

Android​

  • Enable TalkBack
  • Navigate with gestures, BT keyboard, Voice Access
  • High contrast, color inversion, large text, magnification
  • Install Accessibility Scanner

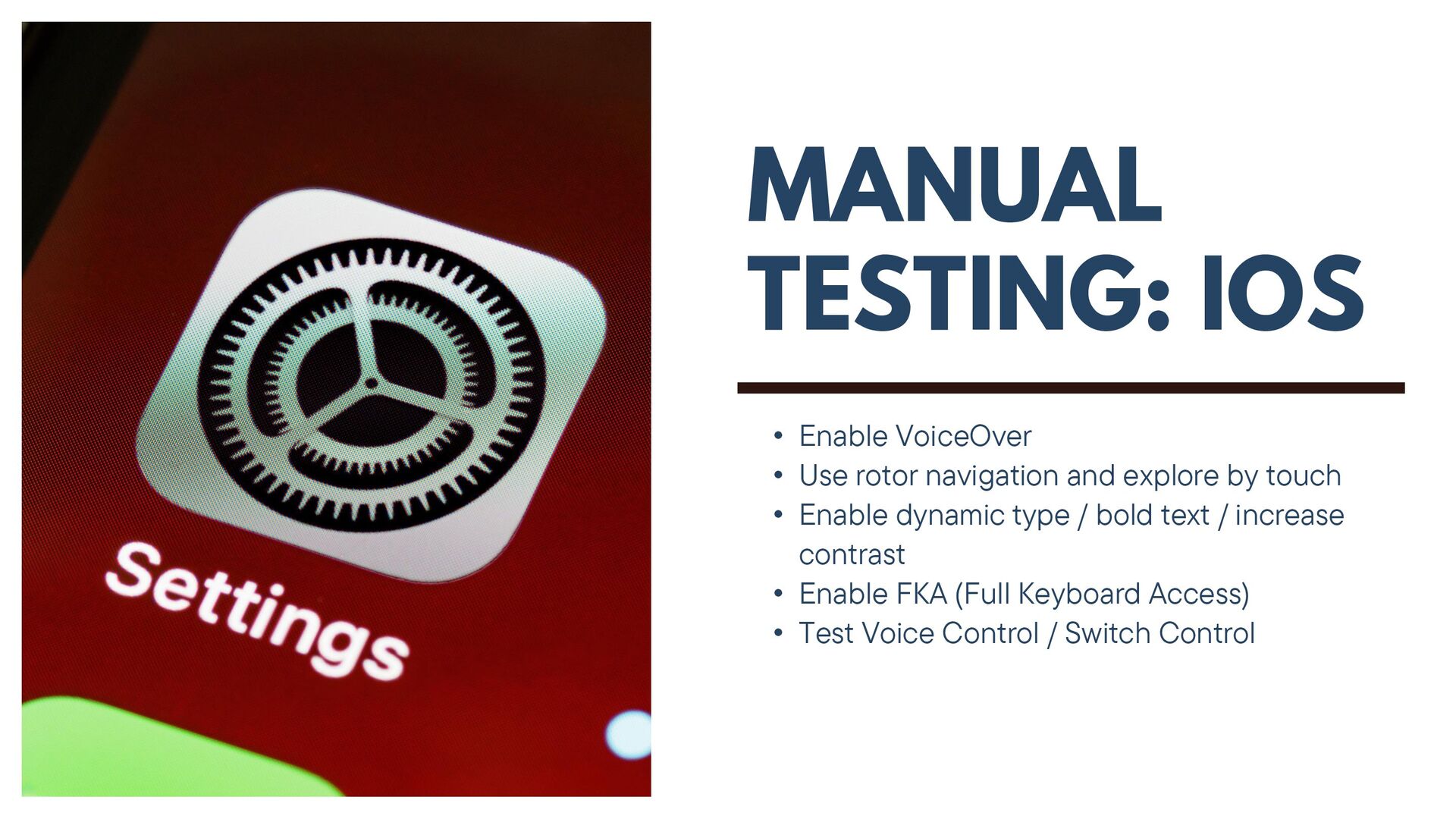

iOS​

  • Enable VoiceOver, rotor navigation, explore by touch
  • Dynamic type, bold text, increase contrast
  • Full Keyboard Access, Voice Control, Switch Control

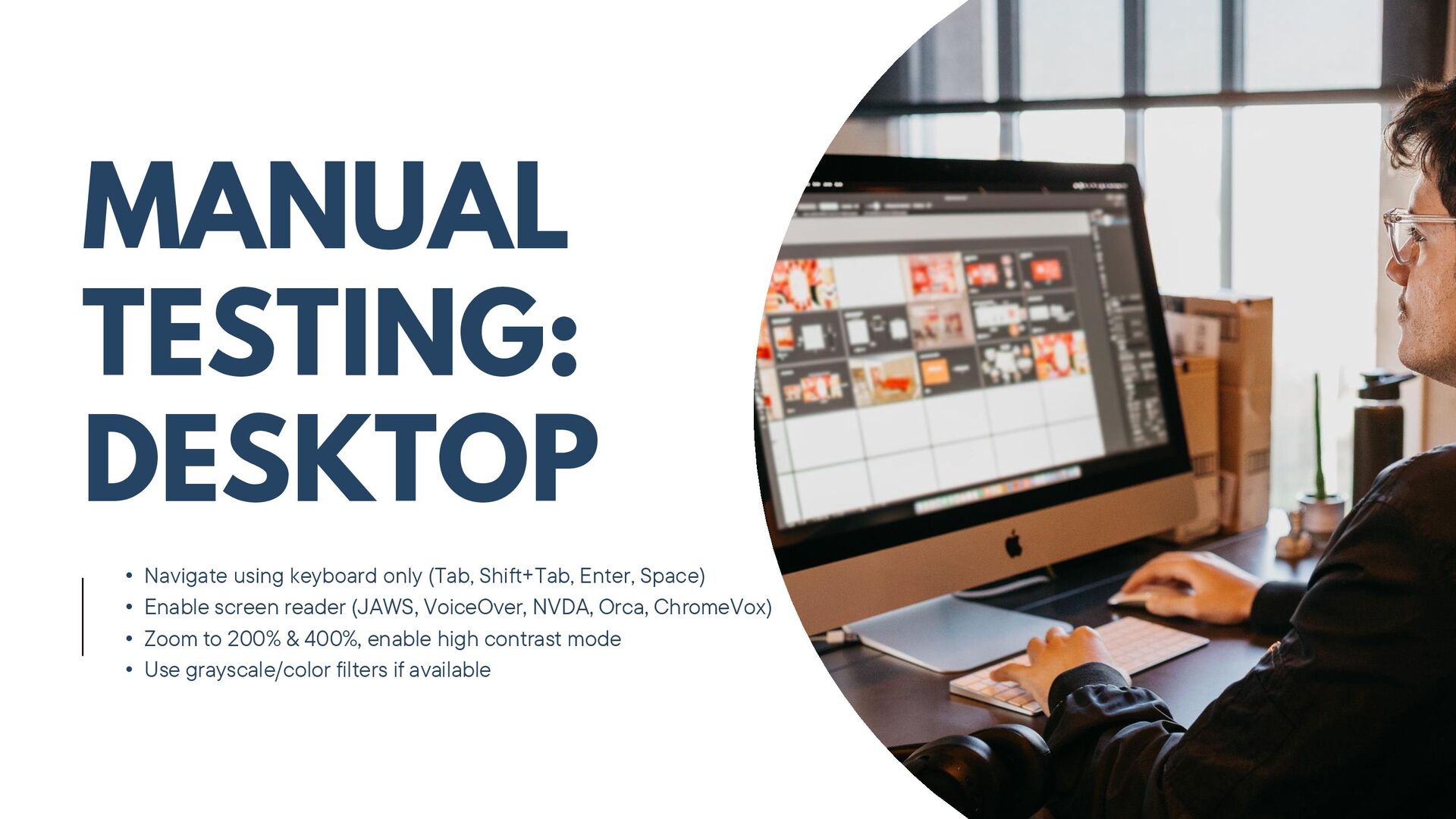

Desktop​

  • Keyboard only navigation (Tab, Shift+Tab, Enter, Space)
  • Screen readers: JAWS, VoiceOver, NVDA, Orca, ChromeVox
  • Zoom to 200% & 400%, high contrast mode
  • Grayscale/color filters

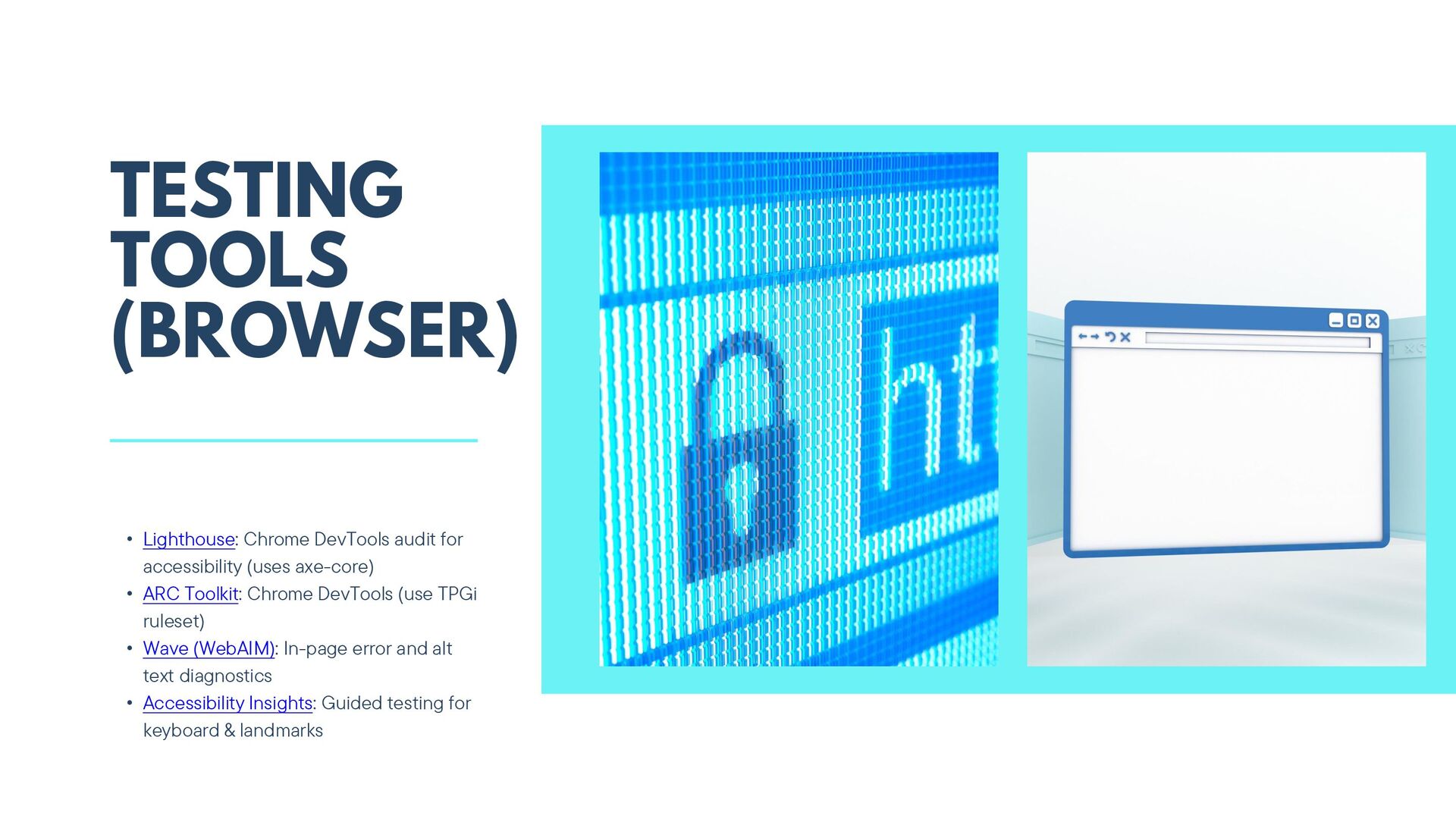

Testing Tools​

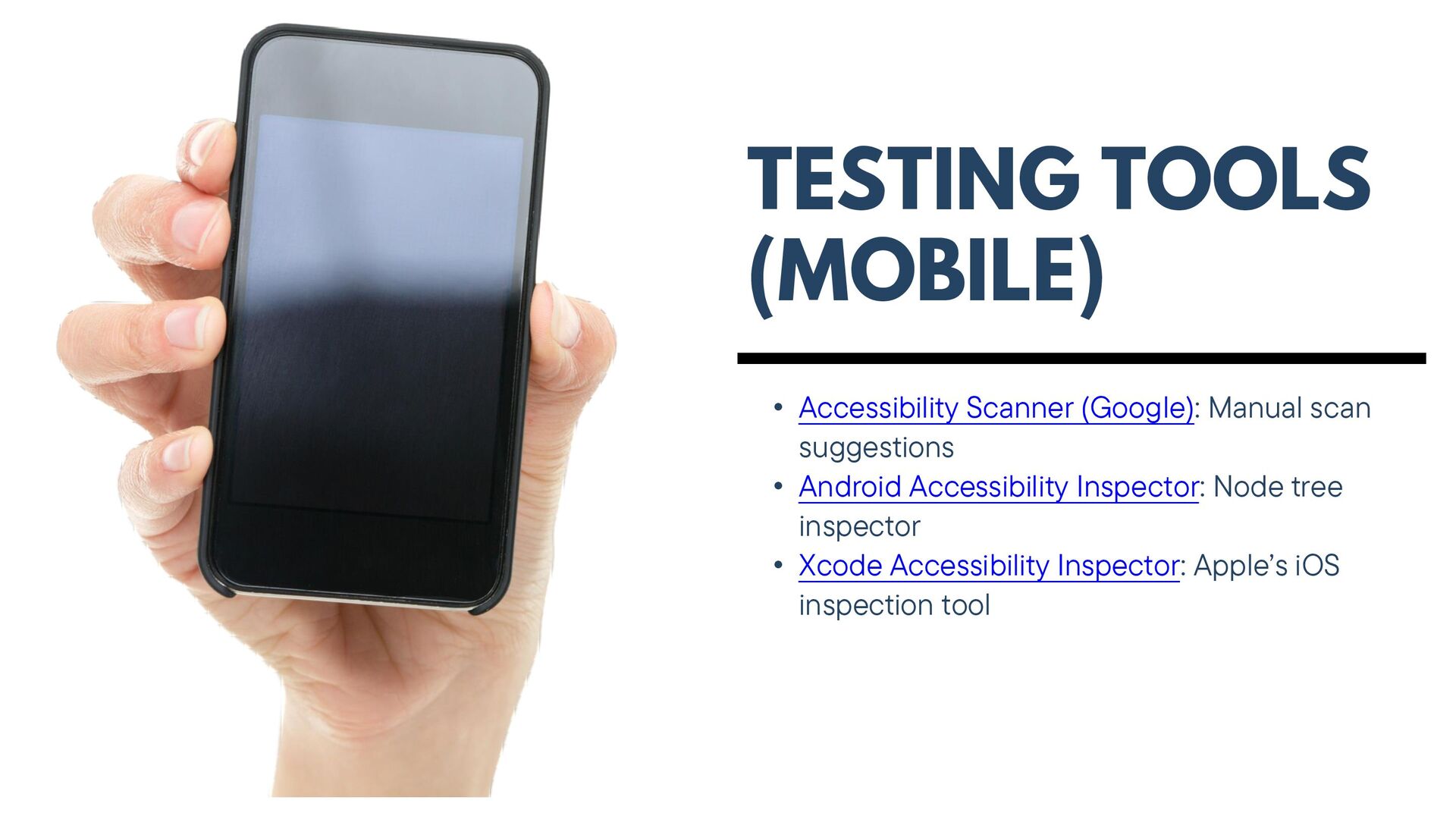

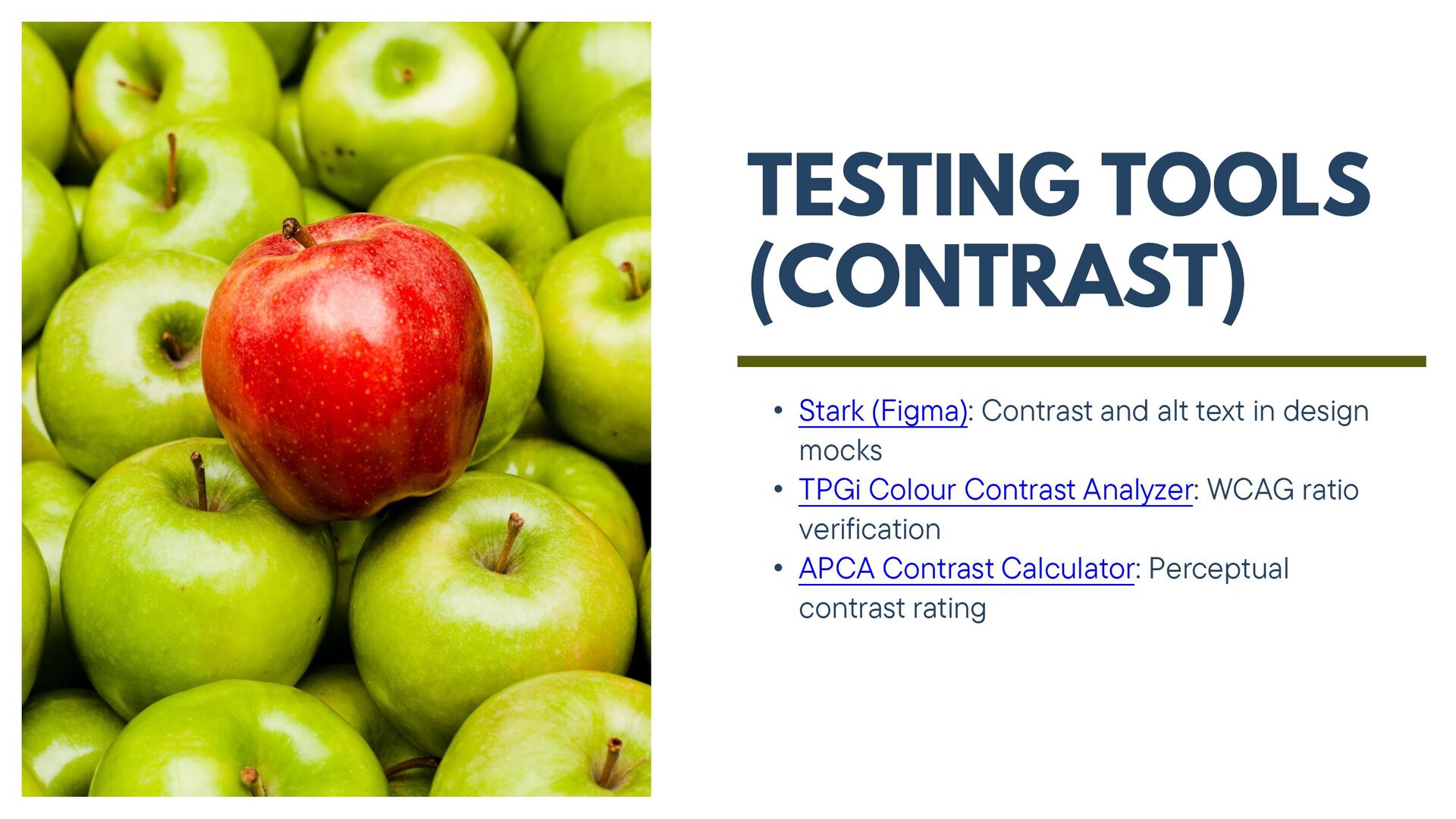

| Browser | Lighthouse, ARC Toolkit, Wave, Accessibility Insights | | Contrast | Stark (Figma), TPGi Colour Contrast Analyzer, APCA | | Mobile | Accessibility Scanner (Google), Android Accessibility Inspector, Xcode Accessibility Inspector |

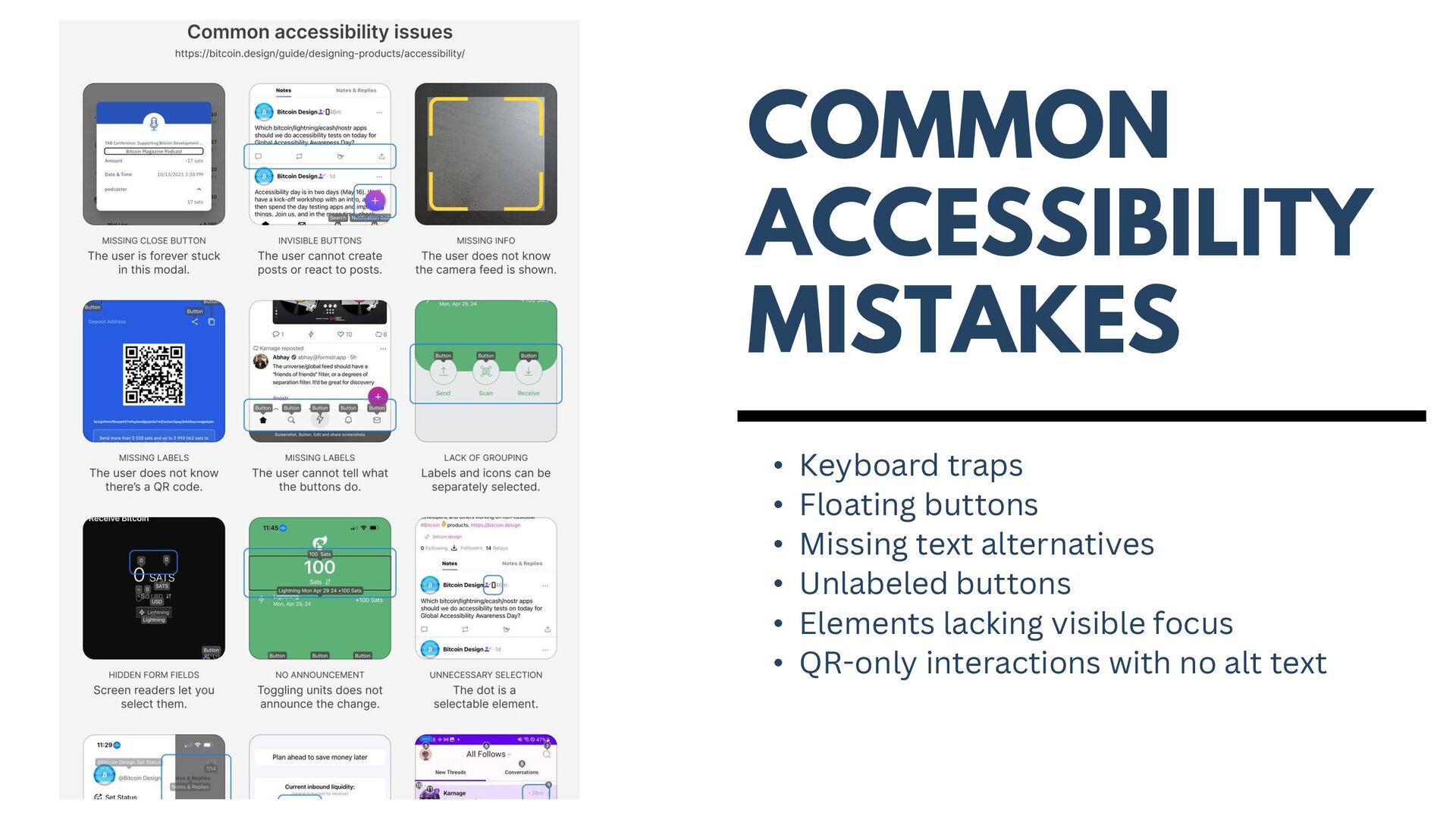

Common Mistakes​

  • Keyboard traps
  • Floating buttons
  • Missing text alternatives
  • Unlabeled buttons
  • Elements lacking visible focus
  • QR-only interactions with no alt text

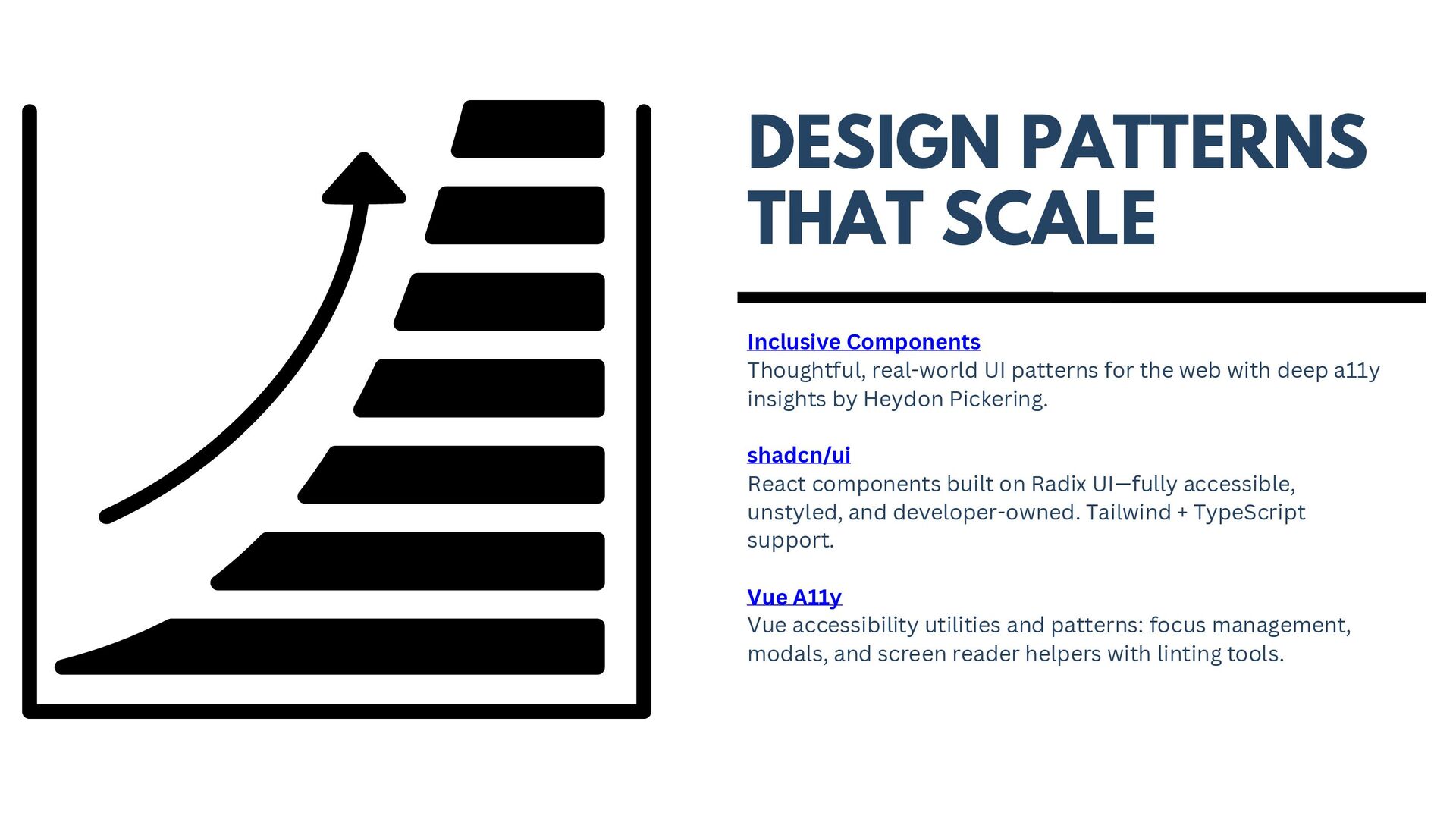

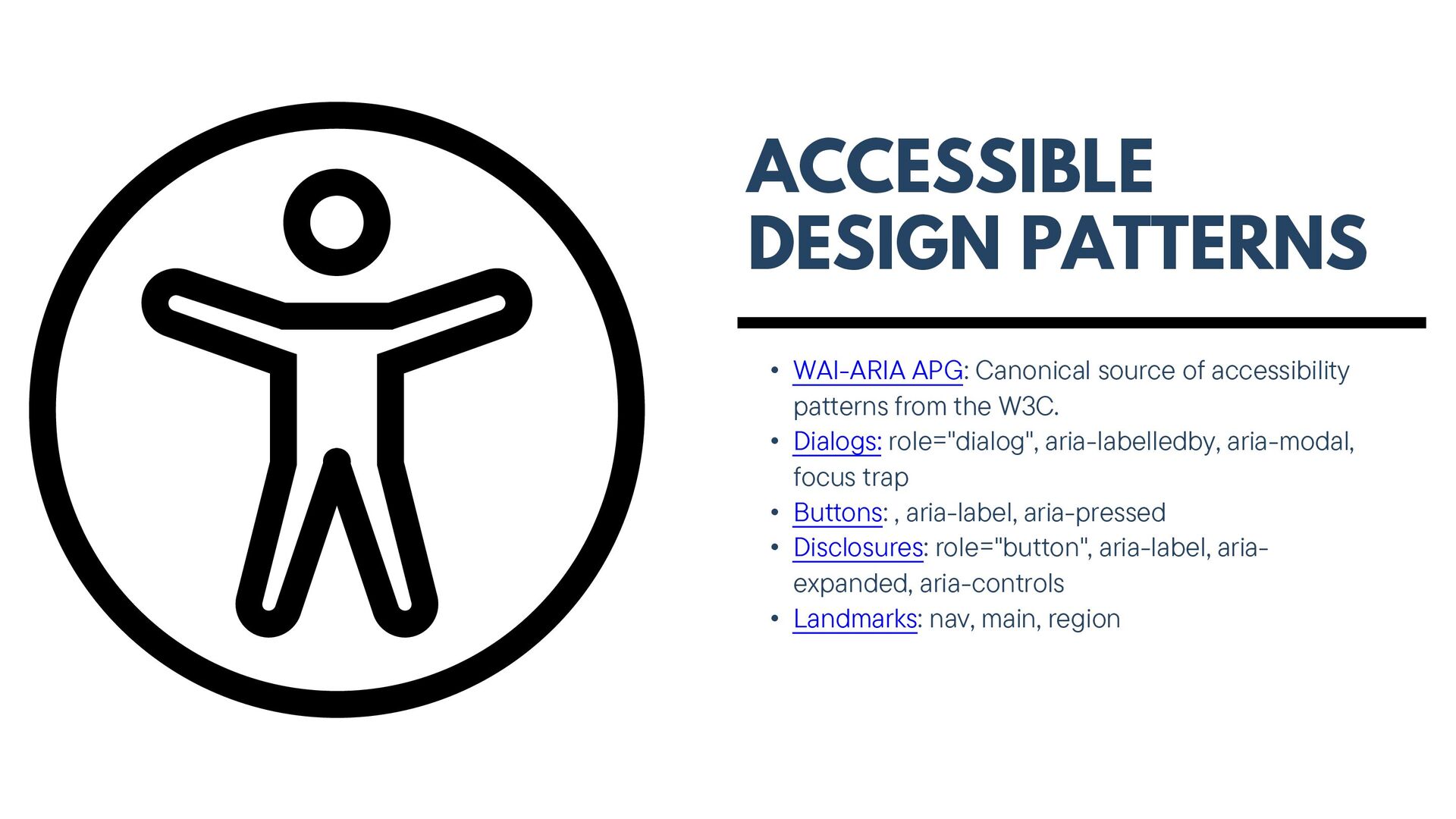

Accessible Design Patterns​

  • WAI-ARIA APG from W3C
  • Dialogs: role="dialog", aria-modal="true", focus trap
  • Buttons: aria-label, aria-pressed
  • Landmarks: nav, main, section
  • Inclusive Components by Heydon Pickering
  • shadcn/ui built on Radix UI
